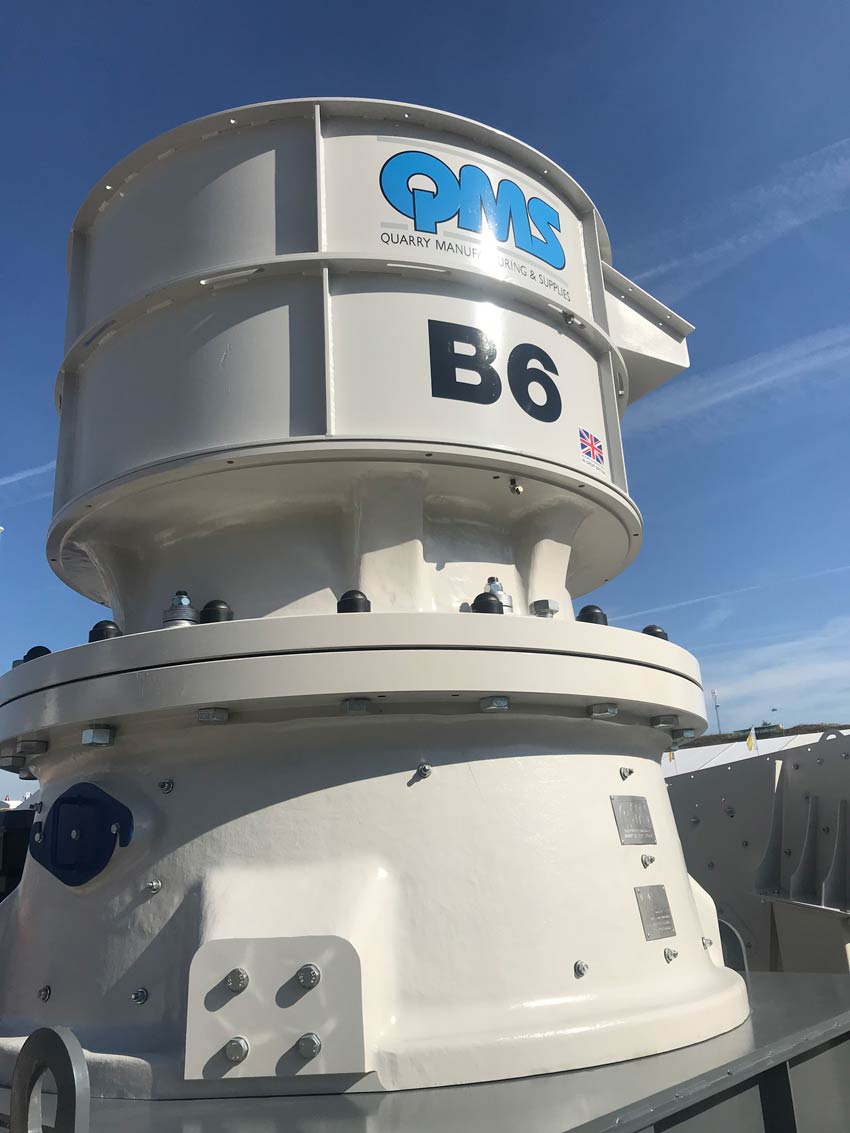

B-Series

The QMS B-Series cone crushers stand out with their unique hydraulic system, a hallmark of innovation in the field. This system provides automatic overload protection by allowing the head assembly to drop, facilitating the safe passage of tramp iron and other non-crushable materials. This feature is particularly advantageous for maintaining operational efficiency and protecting the crusher from potential damage.

Once the obstruction is cleared, the system automatically returns the head assembly to its original position. The ingenious design of the hydraulic system ensures the crusher operates at a specific, consistent setting. This reduces setting drift and enhances stability throughout the circuit. The crusher's setting remains instantaneously maintained, even after encountering a piece of tramp iron, showcasing the reliability and resilience of the B-Series cone crushers.

Another notable feature of the B3 crusher within the B-Series is its liner design. The liners do not require any backing material like plastic, epoxy or zinc. This design choice significantly reduces maintenance time, as there's no need for mixing, pouring or waiting for curing processes. It also enhances safety for maintenance staff, a testament to QMS's commitment to both efficiency and safety in our products.

The B-Series cones are offered with several standard cavity types:

EF = Extra Fine
F=Fine
MF = Medium Fine
M=Medium
MC = Medium Coarse
C=Coarse
EC = Extra Coarse

Each cone crusher in the series is competitively priced and comes with a comprehensive package. This includes lubrication and hydraulic systems, a control system with a touch screen HMI, drive, guards and a support frame, all included within the purchase price. Additional options such as a drive motor and mains electrical starter panels are also available.

Key Features

• Variable eccentric throw and wide range of crushing chambers to suit all applications.
• Easy access and maintenance design for minimal part change downtime
• C3 PLC control
• Bronze bushings
• High capacity intake
• Excellent shape and reduction ratio
• Robust construction to ensure durability
• Available as base unit or modular plant
• No backing material required
