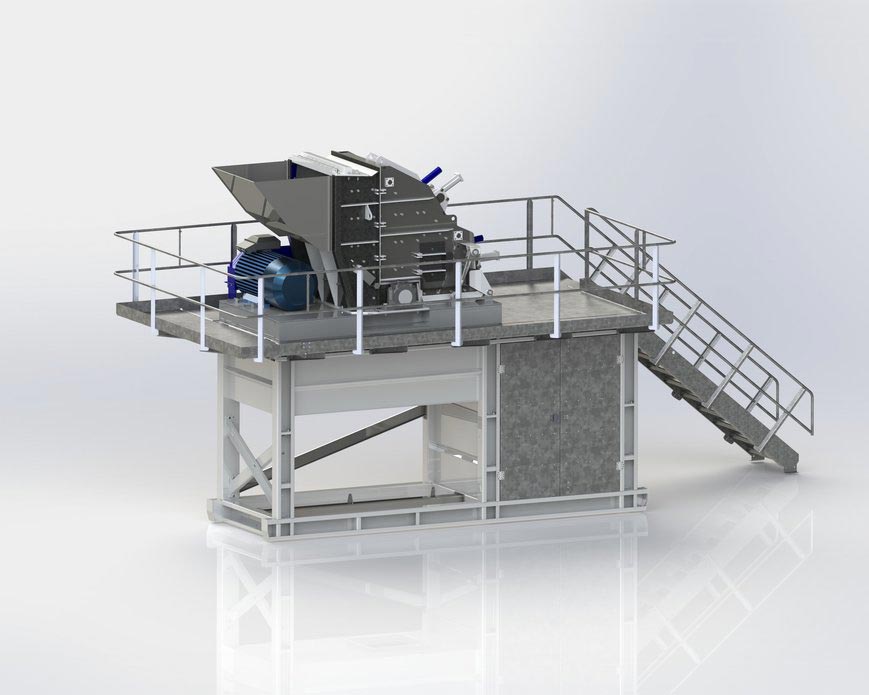

IB Series

The QMS IB Series Impact Crusher range is engineered for outstanding reduction and high consistency of product shape, making it ideal for performance in both quarry and recycling applications.

Designed for high volume and high reduction ratio, the IB Impact Range provides excellent reduction and high consistency of product shape for performance in quarry and recycling applications. These impact crushers are suitable for a wide array of crushing applications, from horizontal shaft impact crusher demands to HSI impact crusher needs, with various feature options available. Whether you need a rotor impact crusher or a blow bar impact crusher, our range is capable of meeting diverse demands.

Our IB Impact Crushing Range is offered as a standard base unit with various customisable options. The inclusion of blow bars for impact crushers ensures efficient performance and longevity.

Key Features

• Output potential of up to 330tph
• Suitable for a variety of feed materials including recycling, demolition and quarrying applications
• Bolt in cartridge grizzly – 42mm nominal spacing
• Variable inverter drive to control speed of feeder
• 4 bar rotor and twin apron design
• Easy access for maintenance
• Economical to operate with all electric drive
• Double deck grizzly feeder under screen
